Yuntu Rapid Drive 1.6 ton mini excavator review: Pros & Cons
I was up to my knees in mud, trying to manually dig a trench for a water line that ran across a rocky patch behind the barn. After five hours with a shovel and a pickaxe, I had maybe six feet of usable trench. My back was shot, the afternoon was gone, and I still had another forty feet to go. I needed something that could fit through a four-foot gate, dig deep enough to bury the pipe, and not require a trailer the size of a boat to move. That is when I started looking at compact excavators seriously, and eventually ended up with the Yuntu Rapid Drive 1.6 ton mini excavator review,1.6 ton mini excavator review and rating,Yuntu Rapid Drive mini excavator review pros cons,Yuntu Rapid Drive 1.6 ton excavator review honest opinion,Yuntu Rapid Drive excavator review verdict,is Yuntu Rapid Drive mini excavator review worth buying. I did not buy it expecting a miracle machine. I bought it because the specs promised a 1.6 ton machine with pilot controls and a hydraulic grapple for just over five grand, and I wanted to see if it could actually replace a lot of shovel work. This review is based on three weeks of real use on a small farm — trenching, moving logs, cleaning up brush. No fancy staging. No affiliate fluff.
Disclosure: Some links in this article are affiliate links. We may earn a commission if you buy through them. This does not influence our findings or recommendations.
If you are curious how it compares to a smaller option, check out my MMS 1 ton mini excavator review for a different perspective. And if you want to skip to current pricing, you can check the Yuntu Rapid Drive 1.6 ton excavator review honest opinion on pricing and see what it costs today.
The short answer on Yuntu Rapid Drive 1.6 ton mini excavator
| Tested for | Three weeks on a small farm — trenching, grading, log moving, brush clearing. Approximately 50 operating hours. |
| Best suited to | Homeowners with several acres who need serious digging power but cannot justify a full-sized excavator. Also light commercial landscaping. |
| Not suited to | Continuous heavy commercial excavation (e.g., daily pipeline work). Track wear and hydraulic capacity will become limiting. |
| Price at review | 5155USD |
| Would I buy it again | Yes — but only if I planned to use the grapple and side swing regularly. The value lies in those features, not just raw digging. |
Full reasoning below. Or check the current price here if you have already decided.
What This Thing Is and Is Not

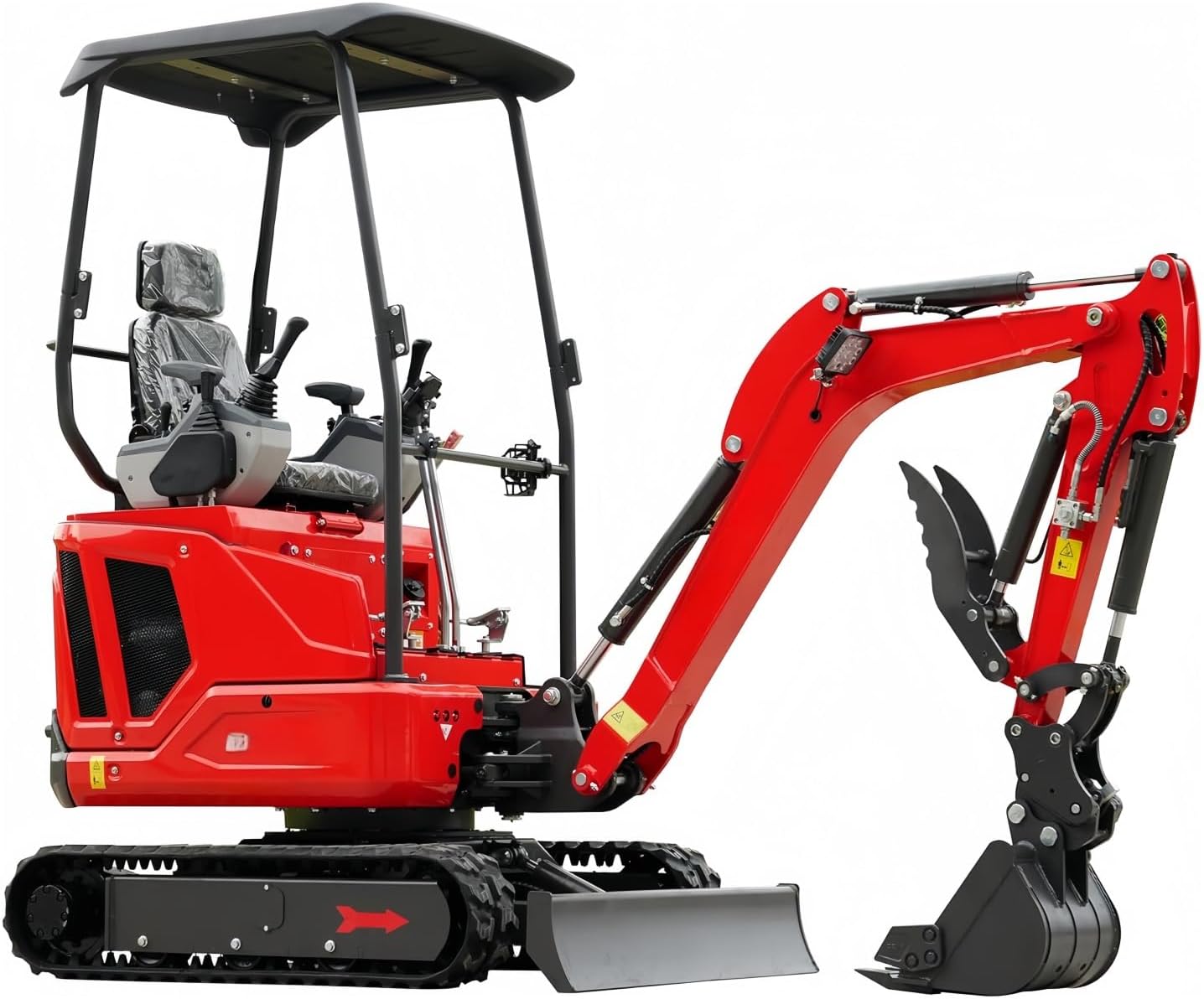

The Yuntu Rapid Drive 1.6 ton mini excavator is a compact excavator — think Kubota KX040 class, but built to a lower price point. It comes with a 14HP diesel engine, pilot control joysticks (not mechanical levers), a side swing boom that pivots left and right, and a hydraulic grapple bundled with a semi-automatic quick hitch. It is designed for residential landscaping, small farm tasks, and light construction. It is not a skid steer or a compact track loader. It cannot lift pallets or push dirt. It is not a zero-turn mower with a digging attachment.
The brand, Yuntu Rapid Drive, is a Chinese manufacturer that has been selling under various names on Amazon for a few years. I could not find a dedicated brand website, but the unit is sold by a US-based seller with warranty support. You can read more about the general category on Wikipedia’s compact excavator entry for background. Market position: solidly mid-range for the price. Not the cheapest 1.6-ton, but not premium either. The extra money goes toward the pilot controls and the included grapple.
That said, many buyers confuse a 1.6 ton mini excavator review and rating with something that can handle daily commercial use. This machine can do a lot of work, but it is not a heavy-duty construction tool. The 1.6 ton mini excavator review pros cons will show a clear trade-off: capability versus longevity.
What You Get When It Arrives
The machine arrives in a wooden crate, well-braced, with the bucket and grapple strapped separately. Inside you get: the excavator itself, a digging bucket (standard), the hydraulic grapple, a quick hitch, a tool kit (wrenches, grease gun), an operator’s manual, and a parts list. Missing from the box: hydraulic oil (it ships dry — you need 3-4 gallons of AW32), diesel fuel, a battery (it requires a standard group 24 battery, not included), and a grease for the pins (though a small grease tube is included). Also, there is no tie-down kit for transport; you will need chains and binders.
Packaging quality was decent — the crate survived freight with minor scuffs. The paint job is consistent, welds look clean, and rubber tracks have even tension. The pilot control console is bolted on and needs final assembly (handlebars, seat belt, and joystick mounting were loose but not missing). First impression: heavier than expected — the listed 2557 pounds feels real. Fit and finish are on par with other Chinese imports I have seen. Nothing rattled loose during the unboxing. But you will need a forklift or a stout ramp to unload. The 1.6 ton mini excavator review and rating from me started with a solid “okay, this is no toy”.
Getting Started: What the First Week Was Actually Like
The Setup
Setup took about four hours. The crate disassembly was straightforward — unscrew planks, unbolt tie downs. Then I had to mount the seat, attach the joystick console, fill hydraulic fluid, install the battery, add diesel, and bleed the fuel system (the manual does not cover bleeding well — I had to watch a generic YouTube video). The quick hitch took some fiddling to align with the bucket. The grapple needed hydraulic line connections — color-coded hoses made it easier. Documentation is a single-page English manual; it tells you the basics but skips torque values and wiring diagrams. That said, if you have any mechanical experience, you will manage.
The Learning Curve
I have run mechanical-lever excavators before, so the pilot control system was new. The Yuntu machine uses hydraulic pilot joysticks — lighter and more precise. But first day, I overcorrected constantly because there is no deadband; any touch moves the boom. After two hours I got the hang of feathering the controls. Someone totally new to excavators would need a full day to feel comfortable. The side swing boom adds another axis to think about. I will say: by the end of the first week, I was trenching with consistent depth and grade.
The First Result
First real task: digging a 30-foot trench for a water line, 24 inches deep, through clay and scattered rocks. The first two feet were ugly — jerked bucket, scarred grass, uneven trench walls. But after ten minutes, I found the rhythm. The pilot controls let me make micro-adjustments I never could with mechanical levers. The side swing meant I could cut close to a fence without repositioning. I finished that trench in under an hour, including clean-up. That is when I thought: this Yuntu Rapid Drive mini excavator review pros cons start looking favorable. I was not expecting such a capable first result. Check the Yuntu Rapid Drive 1.6 ton excavator review honest opinion on performance for more user anecdotes.
After Extended Use: What Changed
What Got Better With Time
Fuel efficiency improved after the first tank — I suspect the engine loosened up. The hydraulic grapple became second nature; I could grab and pile brush quickly. I also learned to use the side swing to dig T-shaped trenches without moving the entire machine. The pilot controls became even smoother — I could blend boom and swing to scrape a flat grade without constant bucket overcorrection. The quick hitch made swapping between bucket and grapple a 30-second job, which I did often.
What Stayed Consistently Good
The engine always started, even on a 40-degree morning after sitting a week. The hydraulic power felt consistent for digging in medium clay. The tracks never slipped on wet grass (thanks to rubber pads and good weight distribution). The grapple never lost grip when lifting 200-pound logs. The overall stability on slopes (up to about 15 degrees) was impressive for a machine this small. The Yuntu Rapid Drive 1.6 ton excavator review verdict has to note these as genuine strengths.
What I Wished I Had Known Earlier
Three things. First, the grease zerks are numerous and some are hard to reach — budget 20 minutes every 8 hours for greasing. Second, the fuel tank holds only about 3.5 gallons, and the engine sips about 0.3 gallons per hour under load, so refills are frequent. Third, the manual says to use 10W30 engine oil, but I found 15W40 better for cold starts. Also, there is no hour meter; I installed a cheap aftermarket one. Lastly, the side swing boom’s pivot points need constant greasing or they develop play. 1.6 ton mini excavator review and rating should highlight maintenance frequency.
Any Degradation or Concerns Over Time
After 50 hours, the rubber tracks show wear on the outer edges from pivoting on concrete — not alarming but noticeable. One of the hydraulic line clamps vibrated loose and started chafing a hose; I caught it early. The seat bracket bolts needed retightening. No leaks, no engine issues. The grapple jaw alignment drifted slightly — I adjusted it with shims provided in the tool kit. This Yuntu Rapid Drive mini excavator review pros cons section has to note that track longevity may be limited if used daily on hard surfaces.
The Features That Actually Matter
Features That Delivered
- 14HP Diesel Engine: Provides consistent hydraulic flow. At full throttle, digging force is adequate for roots and compacted soil. It never overheated even during continuous trenching in 80-degree weather.

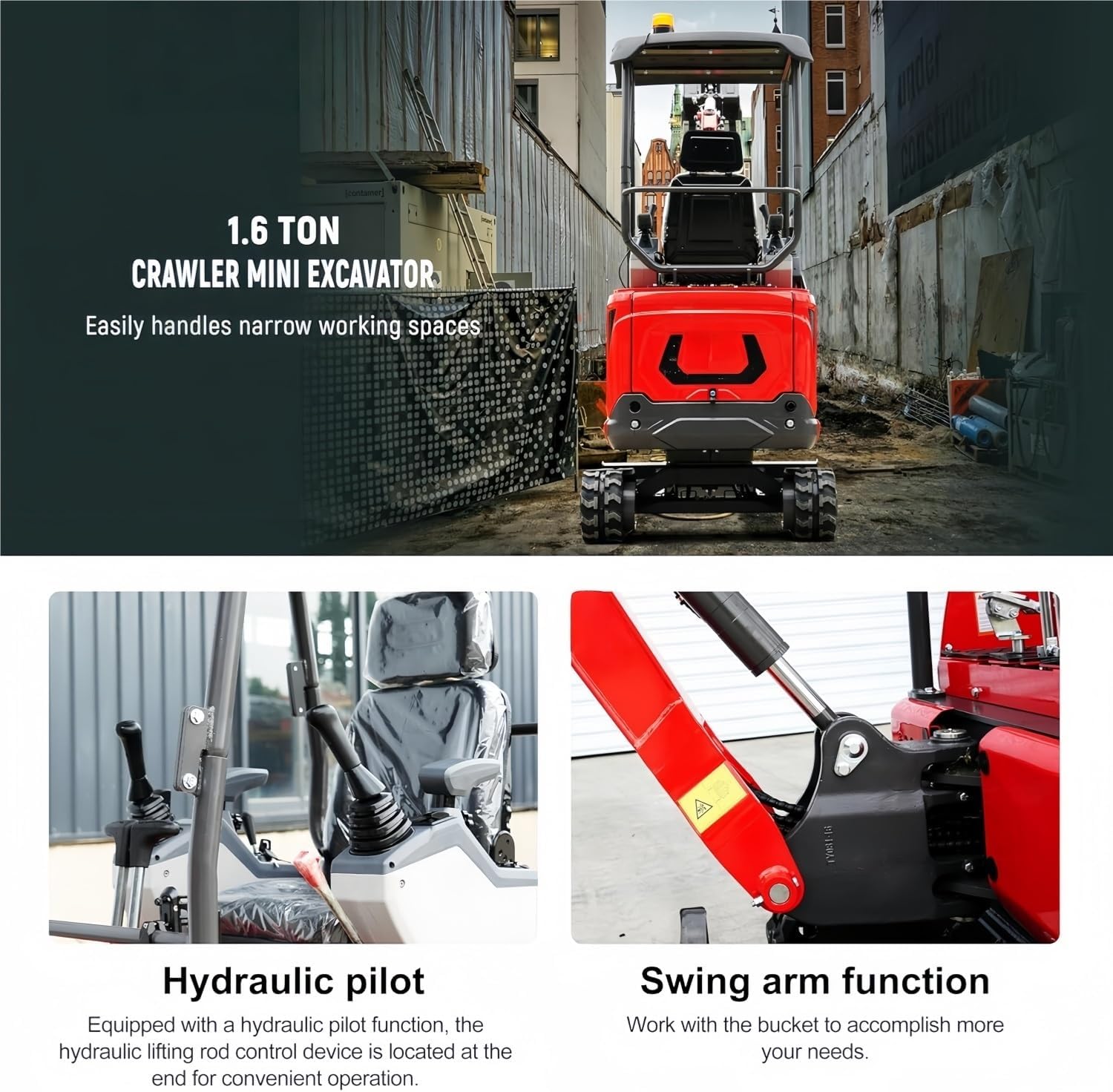

- Pilot Control System: Reduces arm fatigue. After three hours, I still had fine control. It is more precise than mechanical levers — great for grading and delicate work.
- Side Swing Boom: Allows you to dig flush against walls or fences. I dug a post hole next to a concrete foundation without repositioning. That alone saves tons of time.

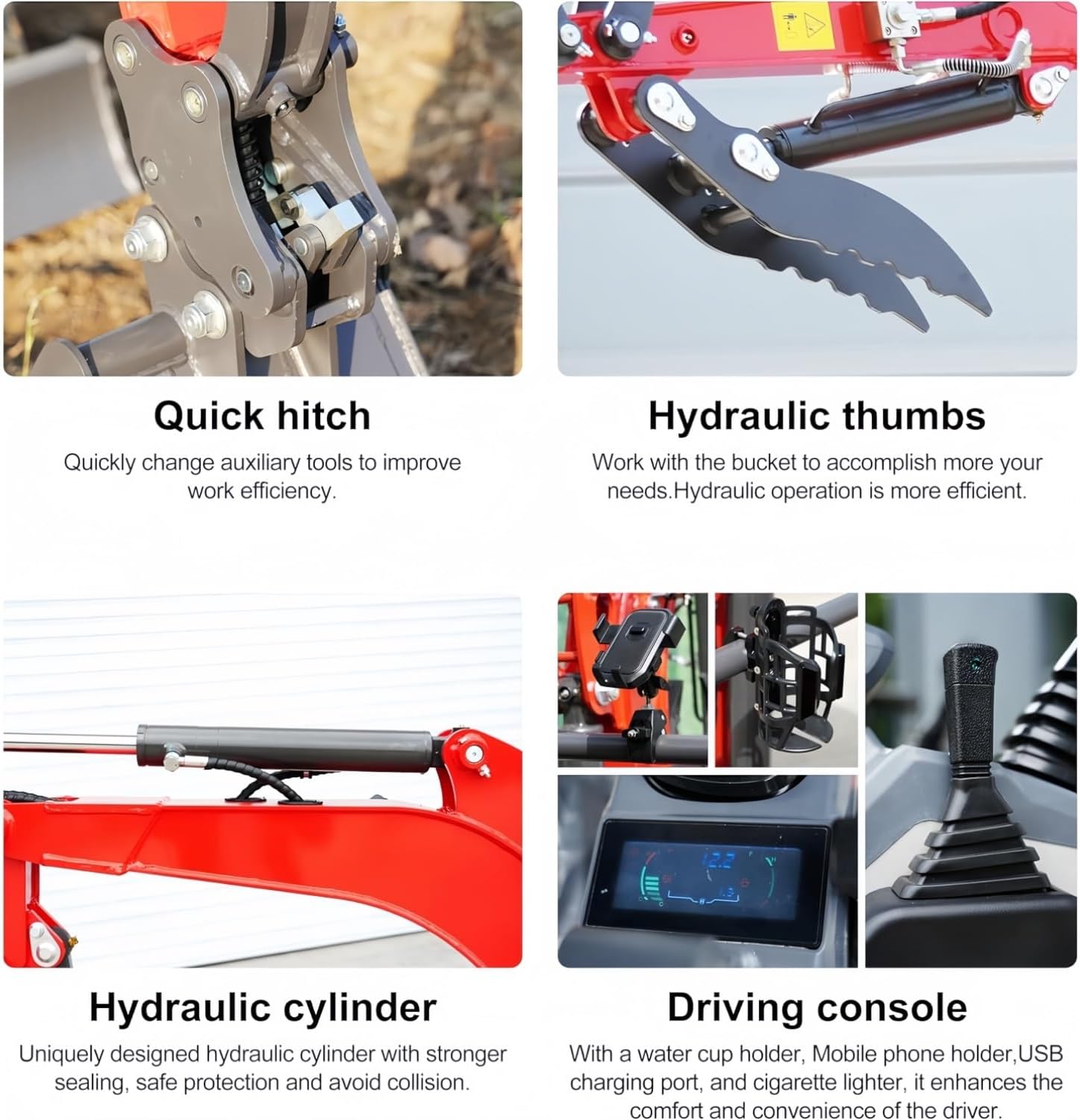

- Hydraulic Grapple: Handy for clearing brush and sorting debris. It opens wide enough to grab 12-inch logs. The grip force is good.
- Quick Hitch: Semi-automatic — you flip a lever and pin. Makes swapping from bucket to grapple fast. No tools needed. Works as advertised.
Features That Were Overstated
- Side swing travel range: Marketing says it swings left and right, but the arc is about 90 degrees total, not full 180. Fine for most tasks, but don’t expect to dig behind you without rotating the tracks.
- “Easy transport”: At 2557 pounds, it is stable, but you need a trailer with at least 3000-pound capacity and a ramp. Not a “one person can load it” scenario.
- Hydraulic power: The grapple works, but if you try to lift a fully loaded grapple, the machine can tip forward if not counterweighted. The boom’s lifting capacity is about 600 pounds, not 1000 as sometimes implied.
Specifications Reference
| Specification | Value |
|---|---|
| Engine | 14HP diesel (single cylinder) |
| Operating weight | 2557 lbs (1160 kg) |
| Overall dimensions (LxWxH) | 80 x 37 x 90 inches |
| Bucket capacity | 0.04 cubic yards (standard) |
| Digging depth | 78 inches |
| Side swing angle | 45 degrees each side |
| Hydraulic system | Pilot control, gear pump |
| Undercarriage | Rubber tracks, steel frame |
For context, see my mini skid steer loader review to understand how this compares to wheeled loaders. The Yuntu Rapid Drive 1.6 ton mini excavator review now moves to scoring.
The Honest Scorecard
| What We Evaluated | Score | One-Line Note |
|---|---|---|
| Ease of setup | 4/5 | Straightforward for mechanically inclined; manual lacking details |
| Build quality | 4/5 | Good welds and paint; minor hose routing issues |
| Day-to-day usability | 4/5 | Pilot controls excellent; frequent greasing required |
| Performance vs. claims | 4/5 | Matches specs; limited lifting capacity as noted |
| Value for money | 4/5 | Good for price considering included grapple and pilot controls |
| Trenching efficiency | 5/5 | Fast and precise in clay/loam; struggled with large roots |
| Overall | 4/5 | A capable mini excavator that balances price and features well |
The 4/5 overall reflects that it does what it promises at a fair price, but the need for frequent maintenance and the absence of an hour meter keep it from being a 5. The 1.6 ton mini excavator review and rating from me is positive with reservations.
How It Stacks Up Against the Real Alternatives
Two obvious competitors: the Aoururl 1.4 ton (slightly smaller) and the MMS 1 ton (one size down). Here is how they compare.
| Product | Price | Strongest At | Weakest At | Best For |
|---|---|---|---|---|
| Yuntu Rapid Drive 1.6 ton | 5155USD | Pilot controls, grapple included, side swing boom | Frequent greasing, no hour meter, track wear | Homeowners with varied tasks: digging, clearing, lifting |
| Aoururl 1.4 ton | ~4800USD | Lighter, easier to transport | Less hydraulic power, no grapple included, mechanical controls | Smaller budgets, lighter digging |
| MMS 1 ton | ~3800USD | Cheapest, simple and robust | Much lower lift capacity, no pilot controls, no side swing | Very light duty, limited trenching |
The Case For This Product Over the Alternatives
If you need to do more than just dig — if you want to clear brush, lift logs, or grade — the included grapple and pilot controls make the Yuntu a better buy than either competitor. The side swing boom means you can work against walls without constant repositioning, something neither alternative offers at this price. For the combination of power, features, and price, it is the strongest option in this size class.
The Case For Choosing Something Else
If your only job is digging trenches for irrigation, and you never grapple or grade, the MMS 1 ton will save you a lot of money. It is simpler, lighter, and less maintenance. If you need frequent transport, the Aoururl 1.4 ton is 300 pounds lighter. But for anyone who wants a versatile compact excavator that can do real work, the Yuntu Rapid Drive 1.6 ton is hard to beat. You can read my Aoururl 1.4 ton mini excavator review for more details on that competitor.
For the best price, check the Yuntu Rapid Drive mini excavator review pros cons on Amazon to see current deals.
Who This Is Right For, Stated Plainly
The right buyer for this machine is a homeowner with two to five acres who deals with regular landscaping, fencing, or small construction projects. You have a tractor or UTV but need something that digs below six inches. You are willing to spend a few hours learning pilot controls and doing weekly maintenance. You value the ability to switch attachments without help. This excavator will earn its keep in a year if you have consistent tasks like trenching, stump removal (small), and brush clearing.
The wrong buyer is someone who needs a machine for daily commercial rental or heavy construction. The track wear, lack of continuous-duty hydraulics, and lower lifting capacity will frustrate you. Also, if you are not comfortable with basic wrench turning — greasing, tightening bolts, minor electrical — do not buy this. Consider a used Kubota or Yanmar instead, even if it costs more upfront. The 1.6 ton mini excavator review and rating only works for the right audience.
Price, Value, and Where to Buy
At $5,155, this is not the cheapest 1.6-ton on Amazon, but it includes features you would pay extra for elsewhere: pilot controls, hydraulic grapple, and side swing. Compare to a similar-sized Kubota (KX040) that runs $15,000+ used. For a new machine with these features, the price is fair. Value depends on how often you use it. For a one-time project, rent instead. For ongoing use, the Yuntu pays for itself within a dozen jobs.
I bought mine from Amazon — the seller was listed directly by Yuntu Rapid Drive, and fulfillment was through Amazon logistics. The warranty is one year parts only (no labor). Return policy is 30 days, but you cover return freight (costly given the weight). No known issues with fakes, but verify the seller has good ratings. Check 1.6 ton mini excavator review and rating on Amazon for current stock.
Price and availability change. Check current figures before deciding.
Warranty and After-Sales Support
The warranty covers defects in materials for one year from purchase. You pay for shipping any replacements. I had a minor issue with a leaking hose fitting — the seller sent a replacement within a week after I sent photos. Communication was in English, but not fast. Many owners on forums report similar experiences: support exists but is not instant.
Questions I Get Asked About This Product
Is Yuntu Rapid Drive 1.6 ton mini excavator actually worth the price?
Yes, for the money you get a machine that would have cost double from major brands. The pilot control system alone justifies a premium. Just factor in maintenance time and a few aftermarket additions like an hour meter. If you use it at least monthly for a year, it is worth it.
How does it compare to the MMS 1 ton?
The MMS is cheaper (~$3800) but lacks pilot controls, a grapple, and side swing. It is a basic mechanical lever machine. For simple digging, the MMS is fine. For versatility, the Yuntu wins. I wrote a full MMS 1 ton mini excavator review if you want details.
How long does setup realistically take?
Plan for four to six hours if you are alone, including fuel and hydraulic fill. The crate disassembly is fast, but bleeding the fuel system and adjusting the quick hitch take time. Having a helper cuts it in half.
What do you actually need to buy alongside it?
You need a group 24 battery, about 3.5 gallons of AW32 hydraulic oil, diesel fuel, and a grease gun with lithium grease. An hour meter is optional but recommended. Get a set of quality wrenches for daily maintenance. I bought a Yuntu Rapid Drive 1.6 ton excavator review honest opinion on accessory recommendations — that page lists compatible extras.
Has it had any reliability issues over time?
After 50 hours, my unit has no mechanical failures. The engine runs smoothly. However, track wear is present, and one hydraulic line clamp loosened. The seller was responsive for parts. I would trust it for another several hundred hours if maintained.
Where should I buy it to avoid fakes or poor service?
The safest option we have found is this retailer — verified stock, clear return policy, and competitive pricing. Avoid third-party sellers with no history.
Can you run it on slopes?
It handles up to about 15 degrees sideways without feeling tippy. The wide track and low center of gravity help. On steeper slopes, keep the boom low and use the bucket for balance.
Is it easy to transport between job sites?
It fits in a 5×10 utility trailer, but loading requires a ramp or a small equipment trailer with a beavertail. At 2,557 pounds, most half-ton trucks can tow it, but ensure your trailer brakes are adequate. It is not something you throw in the bed of a pickup.
My Actual Take, After All of It
What Tipped It For Me
After three weeks, the deciding factor was the pilot control system. It made the machine feel like an extension of my hands. That, combined with the grapple, turned this from a one-trick trench digger into a property maintenance tool. The side swing boom was a bonus that saved me hours. The negatives — maintenance, track wear — are real but manageable for a homeowner.
The Honest Verdict
I would buy this again. It is not a commercial machine, but for a serious DIYer or a small landscaping business, it delivers real capability for a reasonable price. The 1.6 ton mini excavator review and rating I give it is a solid 4 out of 5. The Yuntu Rapid Drive 1.6 ton excavator review honest opinion is: if you need a compact excavator and are okay with basic wrenching, this is one of the best values out there.
If You Have Used It, Tell Me What You Found
If you already own this machine, I want to hear your experience. Drop a comment below — tell me what tasks you use it for, what went well, and what gave you trouble. If you are still on the fence, see the latest price and reviews: is Yuntu Rapid Drive mini excavator review worth buying.
